Rotameter Working principle & Applications
The first rotameter remembering turning float was imagined by Karl Kueppers for Aachen in the year 1908. From that point forward, this development was worked on through new float shapes and the glass tube. Karl Kueppers planned the uncommon model inside the glass cylinder to perceive a balanced stream scale. The rotameter is otherwise called the variable region stream meter.
The Rotameter brand name was recorded by the British organization to be specific "GEC Elliot mechanization. Also in Germany, this brand name is enlisted by Rota Yokogawa GmbH and Co. KG. So as of now, it is claimed by Yokogawa Electric Corp. This article examines an outline of a rotameter and its working with applications.
What is a Rotameter?

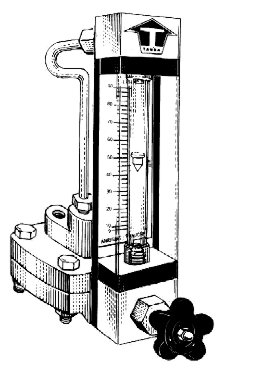

Rotameter is a dependable, straightforward, and minimal expense stream estimating instrument. So this instrument is utilized to quantify the stream pace of a fluid or a gas. This meter incorporates a tightened tube through a moving inward float. Once in a while, rotameters are additionally called gravity stream meters, mechanical stream meters or variable region stream meters. In gravity stream meters, the term gravity implies, the rotameter should be introduced upward. The rotameter would look as displayed underneath.
Rotameter
Rotameters' functioning standard is to gauge the stream pace of fluid in light of the fact that the fluid supplies all through a tightened tube. When the fluid supplies all through the cylinder then its cross-sectional area will become higher.
The rotameter development should be possible by utilizing various parts like straightforward cylinder, scale, float, and transmitter.
In the development, the state of the straightforward cylinder is tapered which incorporates a scale and floats inside it. This straightforward cylinder is extremely useful in noticing the estimations straightforwardly.
A float is a little gadget inside the container of a rotameter with exact aspects. The float is utilized to demonstrate the pace of stream of fluid inside the cylinder, which can be planned with plastic, glass, or metal.
The scale on this meter shows the stream estimations by appearing with float.
Transmitters are exceptionally useful in recording the stream estimations unequivocally when contrasted with we eyewitness on the scale straightforwardly.
It incorporates a float and a tightened tube where the float is organized inside the tightened tube. At the two closures of the gadget, nets are organized through a pipeline utilizing flanged associations. Rotameters are associated upward consistently ready to go and a scale is accessible on the cylinder to check the stream rate esteems straightforwardly.
Rotameter Working
In a rotameter, fluid streams from the foundation of the tightened tube, after that a portion of the fluid straightforwardly arrives in a desperate predicament of the float and the excess fluid will stream away from the float. Along these lines, the float in the rotameter encounters two powers the converse way, the gravitational power is a drawback, and the drag power is on the potential gain.
The progression of fluid pushes the float up from gravity. After some time, the streaming district accomplishes a position any place the power incited on the drifting body precisely coordinates with the float's weight. So the float will find balance once the region in the locale of float produces adequate drag which is identical to weight.
When both the gravity and float weight are steady, then, at that point, the distance float moved vertical is comparative with the stream speed of the fluid which is streaming all through the tightened tube.
The accompanying boundaries need to consider while choosing rotameters.
Stream rates resemble the volumetric stream pace of liquid and gas.
Working strain
Temperature of fluid
Breadth of line
Showing sort of scale
Prerequisites of valve
Sorts of Rotameter
These are accessible in three sorts which incorporate the accompanying.
Rotameter Types
Rotameter Types
Glass Tube Flowmeters
Shielded Purgemeter
Flanged Armored Rotameter
Glass Tube Purge and Low Flow Meters
Glass Tube Flowmeter
The glass tube rotameter is the most well-known sort of meter, so generally utilized in businesses, pilot plants and labs to ascertain stream paces of various fluids and gases. These gadgets screen gaseous petrol supply into heaters and broilers, cooling fluids to monitor gear, testing frameworks inside labs and stream pace of water in and out of immense tanks.
The Glass tube rotameter model is 10A4500 which is open through flanged associations or NPT and it incorporates a defensive safeguard and snap in tube.
Defensively covered Purgemeter
Defensively covered cleanse meters can clean the fluid assuming the framework condition isn't great. This rotameter is utilized for high strain, destructive and low stream rate-based applications.
These are utilized in different inspecting frameworks, gas analyzer frameworks, and where glass tubes are not appropriate for wellbeing reasons. The 10A3200 is an illustration of protected cleanse meter, accessible with NPT strings and needle valve choice.
Flanged Armored Rotameter
The flanged protected rotameter is utilized inside mechanized frameworks any place the applications need very misty liquids at strong conditions. So it is appropriate for the most part in high-pressure-based applications.
These rotameters are exceptionally useful in estimating the obscure, forceful and non-conductive fluids as a rule in petrochemical, substance, drug based ventures inside high-pressure-based applications.
An illustration of the flanged shielded sort is FAM54 including flanged associations. It tends to be utilized with transmitter, discretionary alerts, HART interchanges, aggregated heartbeat yield and configurable advanced presentation.
These gadgets are additionally accessible as a PTFE lined meter, metal cylinder meter in any case a hotness followed meter utilized for liquids that react to temperature.
Glass Tube Purge and Low Flow Meters
Glass tube cleanse rotameters are reasonable for low stream rate applications like instrument nooks and cleansing control lines. The burgomaster is extraordinary for fluid inspecting, explicit gravity, estimations of its level and other less progression of gases and fluids applications.
The Glass tube cleanse meter model is 10A6130 which incorporates a defensive safeguard, needle valve and ball check valve at the channel in any case outlet.
Glass Tube Rotameter
A glass tube rotameter is principally used to close down the substantial hardware consequently once the bearing oil supply turns out to be extremely low, electrical gear closes down once the progression of cool water drops under a decent breaking point. An illustration of a Glass tube rotameter is 10A2235 which is accessible with an empty bronze body, remarkable channeling courses of action and NPT strings.
Distinction b/w Rotameter versus Flow Meter
A rotameter is a stream meter used to quantify the volumetric progression of liquids and gases. There is no distinction b/w a rotameter and a stream meter in light of the fact that these two terms are used conversely.
Rotameter Equations and Derivations
The Rotameter can be sorted out upward where the foundation of the cylinder is dainty and gets expansive when the top is reached. The stream starts from the base and climbs to where the float's weight adjusts the strength utilized by the fluid stream. Assuming the liquid stays lower when contrasted with the speed of sound, the incompressible Bernoulli's hypothesis condition is applied essentially as balance on the rotameter framework.
1/2 V2/g + z+p/pg = C
In the above condition,
'g' is the gravitational speed increase
'V' is the liquid's speed
'z' tallness on top of a subjective beginning
'C' is consistent
In the first place, we want to set the above condition to zero as all powers are adjusted on the rotameter once the float is fixed.
ρg[1/2 V2/g + z+p/pg] = 0
1/2 V2/g + z+p/pg = 0
From that point onward, analyze for focuses at top (b) and base (a) of the fluid float.
1/2 ρV22/g – 1/2 ρV12z+ ρgz2-ρgz1 = p1-p2
The above condition can be rearranged to
Δρ = ρghf + 1/2 ρVb2 + [1-(va/vb)2]
In the above condition, 'f' signifies the properties of the float where the 'hf' is the float's stature. The volumetric fluid stream rate is comparative at the top and the lower part of the fluid float, so
Q = VaAa = VbAb
In the above condition, 'Q' is the volumetric stock, 'V' is the volumetric stream and 'A' is the region.
From the above condition, Vb = Va [Aa/Ab] = Q/Ab
Substitute this 'Vb' esteem in Bernoulli's situation.
Δp = ρghf + 1/2ρ [Q/Ab]2[1-(Ab/Aa)2]
From the above condition, for addressing 'Q'
[Q/Ab]2 = 2 [δp – ρghf]/ρ[1-(Ab/Aa)2]
Q = [√2 [δp – ρghf]/ρ[1-(Ab/Aa)2]] Ab
The change inside tension can be viewed as commonly from the heaviness of the float.
Δp = F/A
Δp = Vf (ρf-ρ)g/Af
In the above condition, 'Vf'is the measure of the float, 'ρf' is the float's thickness and 'fA' is the area of the float.
Ideal inviscid fluids would permit the condition of stream which is displayed above, nonetheless, the energy can be changed into heat. By and large, brings down the real speed of the fluid. The consistency of the liquid can be represented utilizing the release coefficient (C).
Benefits and Disadvantages
The upsides of a rotameter incorporate the accompanying.
Economical
The strain drop is low.
Great rangeability.
It is fitting for little stream rates.
It is just utilized with switches, alerts, or any communicating gadgets.
By utilizing these meters, destructive fluids stream rate can be estimated.
The detriments of rotameter incorporate the accompanying.
It should be associated in vertical
Dealing with the glass tube is troublesome.
It isn't able for throbbing administrations.
It is confined to little line administrations.
It is confined to low temperatures.
Its exactness is ± 1/2 to 10%.
It utilizes in-line mounting.
What is a rotameter utilized for?/what is rotameter Applications ?
The utilizations of rotameter incorporate the accompanying.
Rotameters are utilized in various enterprises.
These are utilized where there is a quality air supply is required.
This is utilized where low strain is vital.
Utilized in labs.
Interaction and oil ventures.
Utilized in the clinical field
